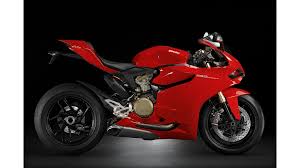

1199 PANIGALE ABS

1199 PANIGALE ABS
OTR JATIM
RP:450.000.000

Technical specification :

Engine :
TypeSuperquadro: L-twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
Displacement1198cc
Bore x Stroke112x60.8mm
Compression ratio12.5:1
Power143 kW (195 hp) @ 10,750 rpm
Torque132 Nm (98.1 lb-ft) @ 9,000 rpm
Fuel injection"Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies."
Exhaust2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves

Transmission :
Gearbox6 speed
Primary driveStraight cut gears, Ratio 1.77:1
Ratio1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24
Final driveChain 525; Front sprocket 15; Rear sprocket 39
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control

Chassis :
FrameMonocoque Aluminium
Front suspension"Öhlins NIX30 43mm with TiN, fully adjustable usd fork. Electronic compression and rebound damping adjustment"
Front wheel3-spoke forged light alloy 3.50" x 17"
Front Tyre120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear suspensionFully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm."
Rear wheel3 spoke forged light alloy 6.00" x 17"
Rear tyre200/55 ZR17 Pirelli Diablo Supercorsa SP
Front wheel travel120mm (4.72in)
Rear wheel travel130mm (5.12in)
Front brake2 x 330mm semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers ABS optional +2.5kg (+5.5lb)"
Rear brake245mm disc, 2-piston calliper

Instrumentation :
Digital unit with TFT colour display: rev counter, speed, gear selected, odometer [Menù 1: trip 1, trip 2, trip fuel], coolant temp [Menù 2: average and actual fuel comsumption, average speed, trip time, air temperature], lap times, selected Riding Mode, DTC level, EBC level, DQS status, ABS level, DDA status (only if mounted), GPS status (only if mounted), SERVICE, diagnostic, clock, full status and/or management of Riding Modes, ""Parking"" mode. Display lay-out: ROAD/TRACK (integrated with Riding Modes). Display backlight colours: DAY/NIGHT (manual or auto selection). Warning lights: oil pressure, neutral, EOBD, turn signals, fuel reserve, high-beam, ABS (if oem), over rev, DTC intervention, immobilizer (in Key-off). DES control (Electronic Suspension). Light control: automatic shutdown while engine start, automatic shutdown after 60s from key-on without engine ignition. All funtions integrated and managed by left and right handlebar switches

Dimensions and weight :
Dry weight164kg (361.5lb)
Wet weight(KERB)188kg(414,5lb)
Seat height825mm (32.48in)
Wheelbase1437mm (56.6in)
Rake24°50'
Trail100mm (3.93in)
Fuel tank capacity17l - 4.5 gallon (US)
Number of seatsDual seat

Equipments :
Standard EquipmentRiding modes,Power modes,DTC,DQS,EBC,DES, Fully RbW

Warranty :
Warranty2 years unlimited mileage
Maintenance service intervals12.000 km (7,500m)
Valve clearance check24.000km (15,000m)
Emissions and Consumption

StandardEuro 3 (Europe) - USA: follows the US Federal Regulation
