STREET FIGHTER 1198 S
OTR JATIM
RP:435.000.000
OTR JATIM
RP:435.000.000
Technical specification
Engine
Type
L-Twin cylinder, 4 valve per cylinder Desmodromic, liquid cooled
Displacement
1099cc
Bore x Stroke
104x64.7mm
Compression ratio
12.5:1
▂Power
114kW (155hp) @ 9500rpm
▂Torque
115 Nm (85 lb-ft) @ 9,500 rpm
Fuel injection
Marelli electronic fuel injection, elliptical throttle bodies
Exhaust
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin stainless steel mufflers
Transmission
Gearbox
6 speed
Primary drive
Straight cut gears, Ratio 1.84:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Chain; Front sprocket 15; Rear sprocket 38
Clutch
Dry multiplate with hydraulic control
Chassis
Frame
Tubular steel Trellis frame in ALS 450
Front suspension
Öhlins 43mm fully adjustable usd forks with TiN
Front wheel
5-spoke in forged light alloy 3.50 x 17
Front Tyre
Pirelli Diablo Corsa 3 120/70 ZR17
Rear suspension
Progressive linkage with fully adjustable Öhlins monoshock with top-out spring. Aluminium single-sided swingarm
Rear wheel
5-spoke forged light alloy 6.00 x 17
Rear tyre
Pirelli Diablo Corsa 3 190/55 ZR17
Front wheel travel
120mm (4.7in)
Rear wheel travel
127mm (5in)
Front brake
2 x 330mm semi-floating discs, radially mounted Brembo Monobloc callipers 4-piston, 2-pad
Rear brake
245mm disc, 2-piston calliper
Instrumentation
Digital unit with displays for: Speedometer, rev counter, lap times, time, air temp, coolant temp, battery voltage, A & B trips, fuel reserve trip, DTC status and level selected (if activated) scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, oil pressure, fuel reserve. Plus: Immobilizer system and management of DTC and DDA
Dimensions and weight
Dry weight
167kg (368lb)
Wet weight(KERB)
197kg (434lb)
Seat height
840mm (33in)
Wheelbase
1475mm (58.1 in)
Rake
25.6°
Trail
114mm (4.49in)
Fuel tank capacity
16.5l - 4.4 gallon (US)
Number of seats
Dual seat
Warranty
TOP
Warranty
2 years unlimited mileage
Maintenance service intervals
12.000km (7.500m)
Valve clearance check
12.000 km (7.500m)
Emissions and Consumption
Standard
Euro 3 (Europe) - USA: follows the US Federal Regulation

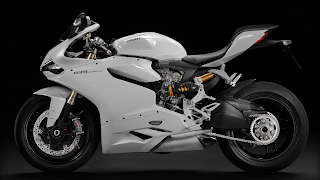

1199 PANIGALE ABS
OTR JATIM
RP:450.000.000
Technical specification :
Engine :
TypeSuperquadro: L-twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
Displacement1198cc
Bore x Stroke112x60.8mm
Compression ratio12.5:1
Power143 kW (195 hp) @ 10,750 rpm
Torque132 Nm (98.1 lb-ft) @ 9,000 rpm
Fuel injection"Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies."
Exhaust2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves
Transmission :
Gearbox6 speed
Primary driveStraight cut gears, Ratio 1.77:1
Ratio1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24
Final driveChain 525; Front sprocket 15; Rear sprocket 39
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Chassis :
FrameMonocoque Aluminium
Front suspension"Öhlins NIX30 43mm with TiN, fully adjustable usd fork. Electronic compression and rebound damping adjustment"
Front wheel3-spoke forged light alloy 3.50" x 17"
Front Tyre120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear suspensionFully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm."
Rear wheel3 spoke forged light alloy 6.00" x 17"
Rear tyre200/55 ZR17 Pirelli Diablo Supercorsa SP
Front wheel travel120mm (4.72in)
Rear wheel travel130mm (5.12in)
Front brake2 x 330mm semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers ABS optional +2.5kg (+5.5lb)"
Rear brake245mm disc, 2-piston calliper
Instrumentation :
Digital unit with TFT colour display: rev counter, speed, gear selected, odometer [Menù 1: trip 1, trip 2, trip fuel], coolant temp [Menù 2: average and actual fuel comsumption, average speed, trip time, air temperature], lap times, selected Riding Mode, DTC level, EBC level, DQS status, ABS level, DDA status (only if mounted), GPS status (only if mounted), SERVICE, diagnostic, clock, full status and/or management of Riding Modes, ""Parking"" mode. Display lay-out: ROAD/TRACK (integrated with Riding Modes). Display backlight colours: DAY/NIGHT (manual or auto selection). Warning lights: oil pressure, neutral, EOBD, turn signals, fuel reserve, high-beam, ABS (if oem), over rev, DTC intervention, immobilizer (in Key-off). DES control (Electronic Suspension). Light control: automatic shutdown while engine start, automatic shutdown after 60s from key-on without engine ignition. All funtions integrated and managed by left and right handlebar switches
Dimensions and weight :
Dry weight164kg (361.5lb)
Wet weight(KERB)188kg(414,5lb)
Seat height825mm (32.48in)
Wheelbase1437mm (56.6in)
Rake24°50'
Trail100mm (3.93in)
Fuel tank capacity17l - 4.5 gallon (US)
Number of seatsDual seat
Equipments :
Standard EquipmentRiding modes,Power modes,DTC,DQS,EBC,DES, Fully RbW
Warranty :
Warranty2 years unlimited mileage
Maintenance service intervals12.000 km (7,500m)
Valve clearance check24.000km (15,000m)
Emissions and Consumption
StandardEuro 3 (Europe) - USA: follows the US Federal Regulation
OTR JATIM
RP:450.000.000
Technical specification :
Engine :
TypeSuperquadro: L-twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
Displacement1198cc
Bore x Stroke112x60.8mm
Compression ratio12.5:1
Power143 kW (195 hp) @ 10,750 rpm
Torque132 Nm (98.1 lb-ft) @ 9,000 rpm
Fuel injection"Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies."
Exhaust2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves
Transmission :
Gearbox6 speed
Primary driveStraight cut gears, Ratio 1.77:1
Ratio1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24
Final driveChain 525; Front sprocket 15; Rear sprocket 39
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Chassis :
FrameMonocoque Aluminium
Front suspension"Öhlins NIX30 43mm with TiN, fully adjustable usd fork. Electronic compression and rebound damping adjustment"
Front wheel3-spoke forged light alloy 3.50" x 17"
Front Tyre120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear suspensionFully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm."
Rear wheel3 spoke forged light alloy 6.00" x 17"
Rear tyre200/55 ZR17 Pirelli Diablo Supercorsa SP
Front wheel travel120mm (4.72in)
Rear wheel travel130mm (5.12in)
Front brake2 x 330mm semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers ABS optional +2.5kg (+5.5lb)"
Rear brake245mm disc, 2-piston calliper
Instrumentation :
Digital unit with TFT colour display: rev counter, speed, gear selected, odometer [Menù 1: trip 1, trip 2, trip fuel], coolant temp [Menù 2: average and actual fuel comsumption, average speed, trip time, air temperature], lap times, selected Riding Mode, DTC level, EBC level, DQS status, ABS level, DDA status (only if mounted), GPS status (only if mounted), SERVICE, diagnostic, clock, full status and/or management of Riding Modes, ""Parking"" mode. Display lay-out: ROAD/TRACK (integrated with Riding Modes). Display backlight colours: DAY/NIGHT (manual or auto selection). Warning lights: oil pressure, neutral, EOBD, turn signals, fuel reserve, high-beam, ABS (if oem), over rev, DTC intervention, immobilizer (in Key-off). DES control (Electronic Suspension). Light control: automatic shutdown while engine start, automatic shutdown after 60s from key-on without engine ignition. All funtions integrated and managed by left and right handlebar switches
Dimensions and weight :
Dry weight164kg (361.5lb)
Wet weight(KERB)188kg(414,5lb)
Seat height825mm (32.48in)
Wheelbase1437mm (56.6in)
Rake24°50'
Trail100mm (3.93in)
Fuel tank capacity17l - 4.5 gallon (US)
Number of seatsDual seat
Equipments :
Standard EquipmentRiding modes,Power modes,DTC,DQS,EBC,DES, Fully RbW
Warranty :
Warranty2 years unlimited mileage
Maintenance service intervals12.000 km (7,500m)
Valve clearance check24.000km (15,000m)
Emissions and Consumption
StandardEuro 3 (Europe) - USA: follows the US Federal Regulation
SBK 848 CORSE EDITION
OTR JATIM
RP:390.000.000
OTR JATIM
RP:390.000.000
Technical specification :
Engine :
TypeL-Twin cylinder, 4 valve per cylinder Desmodromic, liquid cooled
Displacement849.4cc
Bore x Stroke94x61.2mm
Compression ratio13.2:1
Power103 kW (140 hp) @ 10,500 rpm
Torque98 Nm (72.3 lb-ft) @ 9,750 rpm
Fuel injectionMarelli electronic fuel injection, elliptical throttle bodies
ExhaustLightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers
Transmission :
Gearbox6 speed
Primary driveStraight cut gears, Ratio 1.84:1
Ratio1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final driveChain; Front sprocket 15; Rear sprocket 39
ClutchWet multiplate with hydraulic control
Chassis :
FrameTubular steel Trellis frame in ALS 450
Front suspensionShowa 43mmfully adjustable usd forks
Front wheel5-spoke in light alloy 3.50 x 17
Front TyrePirelli Diablo Supercorsa SP, 120/70 ZR17
Rear suspensionProgressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm
Rear wheel5-spoke light alloy 5.50 x 17
Rear tyrePirelli Diablo Supercorsa SP, 180/55 ZR17
Front wheel travel127mm (5in)
Rear wheel travel120mm (4.7in)
Front brake2 x 320mm semi-floating discs, radially mounted Brembo Monobloc 4-piston callipers
Rear brake245mm disc, 2-piston calliper
InstrumentationDigital MotoGP derived unit with displays for: Speed, rev counter, lap times, time, air temp, coolant temp, battery voltage, A & B trips, fuel reserve trip, scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, oil pressure, fuel reserve. Plus: Integrated immobilizer system.
Dimensions and weight :
Dry weight168kg (370lb)
Wet weight(KERB)194kg (428lb)
Seat height830mm (32.6in)
Wheelbase1430mm (56.3in)
Rake24.5°
Trail103mm (4.05in)
Fuel tank capacity15.5l - 4.1 gallon (US)
Number of seatsDual seat
Warranty :
Warranty2 years unlimited mileage
Maintenance service intervals12.000 km (7,500m)
Valve clearance check12.000 km (7.500m)
Emissions and Consumption
StandardEuro 3
Engine :
TypeL-Twin cylinder, 4 valve per cylinder Desmodromic, liquid cooled
Displacement849.4cc
Bore x Stroke94x61.2mm
Compression ratio13.2:1
Power103 kW (140 hp) @ 10,500 rpm
Torque98 Nm (72.3 lb-ft) @ 9,750 rpm
Fuel injectionMarelli electronic fuel injection, elliptical throttle bodies
ExhaustLightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers
Transmission :
Gearbox6 speed
Primary driveStraight cut gears, Ratio 1.84:1
Ratio1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final driveChain; Front sprocket 15; Rear sprocket 39
ClutchWet multiplate with hydraulic control
Chassis :
FrameTubular steel Trellis frame in ALS 450
Front suspensionShowa 43mmfully adjustable usd forks
Front wheel5-spoke in light alloy 3.50 x 17
Front TyrePirelli Diablo Supercorsa SP, 120/70 ZR17
Rear suspensionProgressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm
Rear wheel5-spoke light alloy 5.50 x 17
Rear tyrePirelli Diablo Supercorsa SP, 180/55 ZR17
Front wheel travel127mm (5in)
Rear wheel travel120mm (4.7in)
Front brake2 x 320mm semi-floating discs, radially mounted Brembo Monobloc 4-piston callipers
Rear brake245mm disc, 2-piston calliper
InstrumentationDigital MotoGP derived unit with displays for: Speed, rev counter, lap times, time, air temp, coolant temp, battery voltage, A & B trips, fuel reserve trip, scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, oil pressure, fuel reserve. Plus: Integrated immobilizer system.
Dimensions and weight :
Dry weight168kg (370lb)
Wet weight(KERB)194kg (428lb)
Seat height830mm (32.6in)
Wheelbase1430mm (56.3in)
Rake24.5°
Trail103mm (4.05in)
Fuel tank capacity15.5l - 4.1 gallon (US)
Number of seatsDual seat
Warranty :
Warranty2 years unlimited mileage
Maintenance service intervals12.000 km (7,500m)
Valve clearance check12.000 km (7.500m)
Emissions and Consumption
StandardEuro 3
