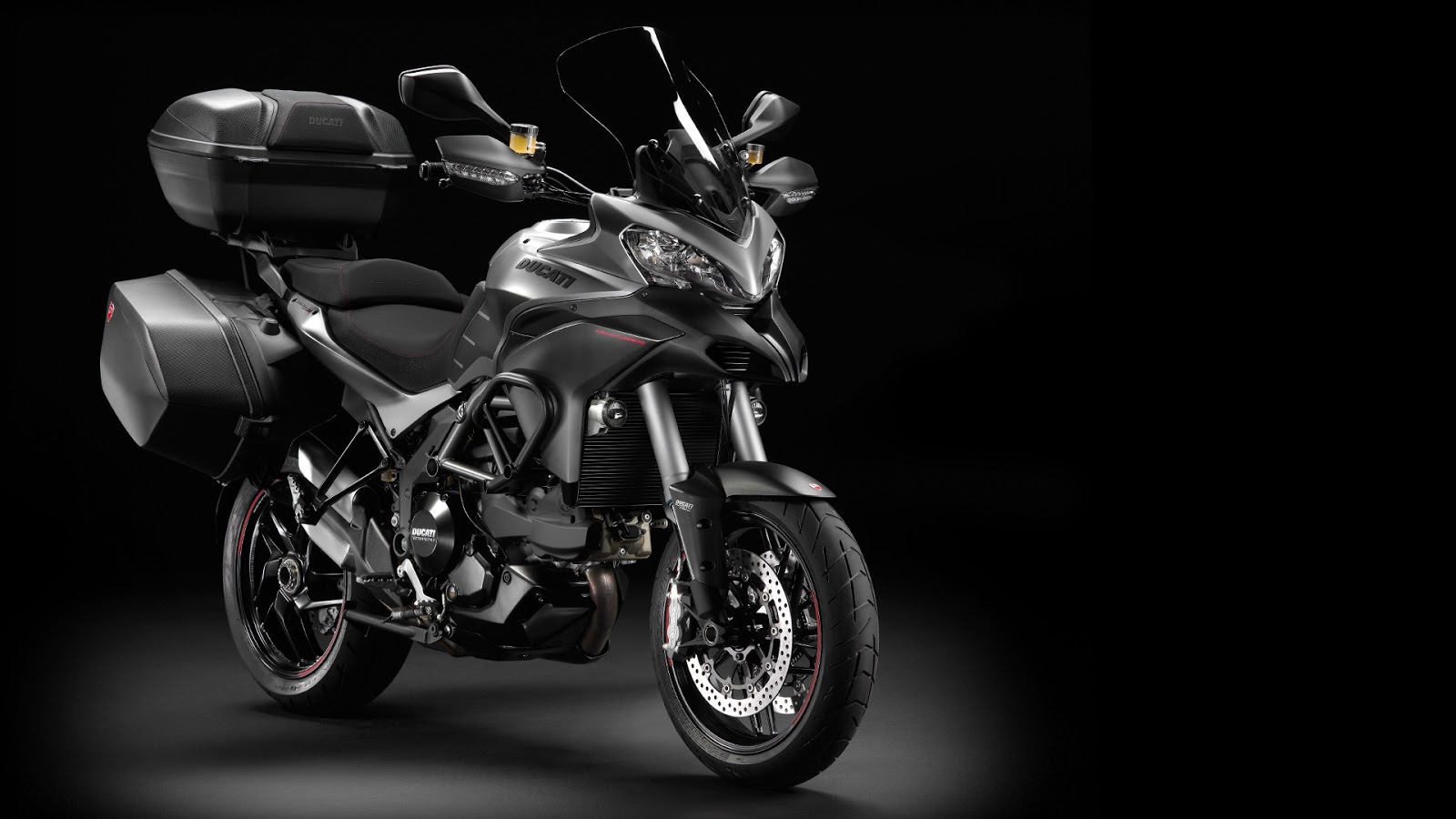

MULTISTRADA GRANTURISMO


SPESIFIKASI MULTISTRADA S GRANTURISMO





Technical specification :

Engine
Type : L-Twin cylinder, 4 valve per cylinder, Desmodromic, Dual Spark, liquid cooled
Displacement : 1198.4cc
Bore x Stroke : 106x67.9mm
Compression ratio : 11.5:1
Power : 110.3kW ( 150HP ) @ 9250rpm
Torque : 124.5 Nm (91.8 lb-ft) @ 7,500 rpm
Fuel injection : Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies
ExhaustStainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes

Transmission
Gearbox : 6 speed
Primary drive : Straight cut gears, Ratio 1.84:1
Ratio : 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
Final drive : Chain 5.30"; Front sprocket 15; Rear sprocket 40
Clutch : Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run

Chassis :
Frame : Tubular steel Trellis frame
Front suspension : Sachs 48mm fully adjustable usd forks. Electronic compression & rebound damping adjustment with Ducati Skyhook Suspension
Front wheel : 10-spoke in light alloy 3.50 x 17
Front Tyre : Pirelli Angel GT 120/70 17''
Rear suspension : Electronic compression & rebound damping adjustment. Electronic spring pre-load adjustment with DSS Aluminium single-sided swingarm.
Rear wheel : 10-spoke light alloy 6.00 x 17
Rear tyre : Pirelli Angel GT 190/55 17''
Front wheel travel : 170mm (6.7in)
Rear wheel travel : 170mm (6.7in)
Front brake : 2 x 320mm semi-floating discs, radially mounted Brembo callipers, 4-piston, 2-pad. ABS as standard equipment
Rear brake : 245mm disc, 2-piston caliper

Instrumentation :
Multifunction digital dashboard of two displays with white backlight. Main LCD display: odometer (total, trip 1 and trip2), speedometer, rev counter, clock, gear indicator, coolant temperature; fuel level. Circular LCD dot-matrix display: trip computer (riding style set-up, active riding parameters, remaining fuel/distance, current fuel consumption, average fuel consumption, average speed, air temperature, trip time), maintenance intervals indicator (Km), signaling alarms and errors detection (diagnosis), setup menu and customization functions. Interface for the management of Riding Modes (control power curve and throttle response, traction control, ABS, DSS). "Parking" and "Steering lock" indicators. Activation and adjustment heated-grips control function (Touring and Granturismo versions only). Lights: oil pressure, neutral N, fuel warning, turn signal, EOBD (diagnosis), high beam, DTC intervention (Traction Control) and deterrent immobilizer (in Key-Off). Headlight control: auto switching-off during engine start, auto turning-off after 60 seconds from Key-On without starting the engine. The key management of the various function menus are integrated in the left and right switch controls.

Dimensions and weight
Dry weight : 217kg (478lb)
Wet weight : (KERB)245kg (540lb)
Seat height : 850mm (33.5in)
Wheelbase : 1530mm (60.2in)
Rake : 25°
Trail : 110mm (4.33in)
Fuel tank capacity : 20l - 5.3 gallon (US)
Number of seats : Dual seat

Equipments
Standard Equipment : Riding Modes, Power Modes, DSS, Ducati Safety Pack (ABS + DTC), RbW, Hands-Free. 73 litre side luggage, 48 litre top case, internal soft bags, heated grips, centre stand, LED spot lights, engine potection-bars, extended screen, +20 mm higher handlebar, comfort seats

Warranty
Warranty : 2 years unlimited mileage
Maintenance service intervals12.000 km (7,500m)
Valve clearance check24.000km (15,000m)
Emissions and Consumption
StandardEuro 3 (Europe
